sensor

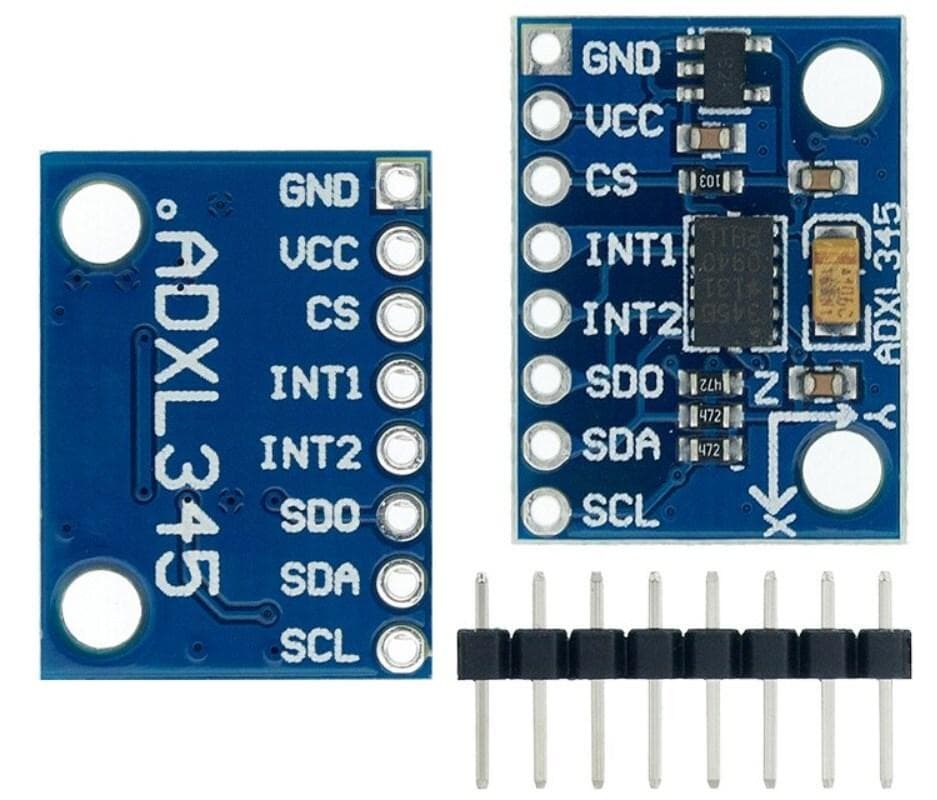

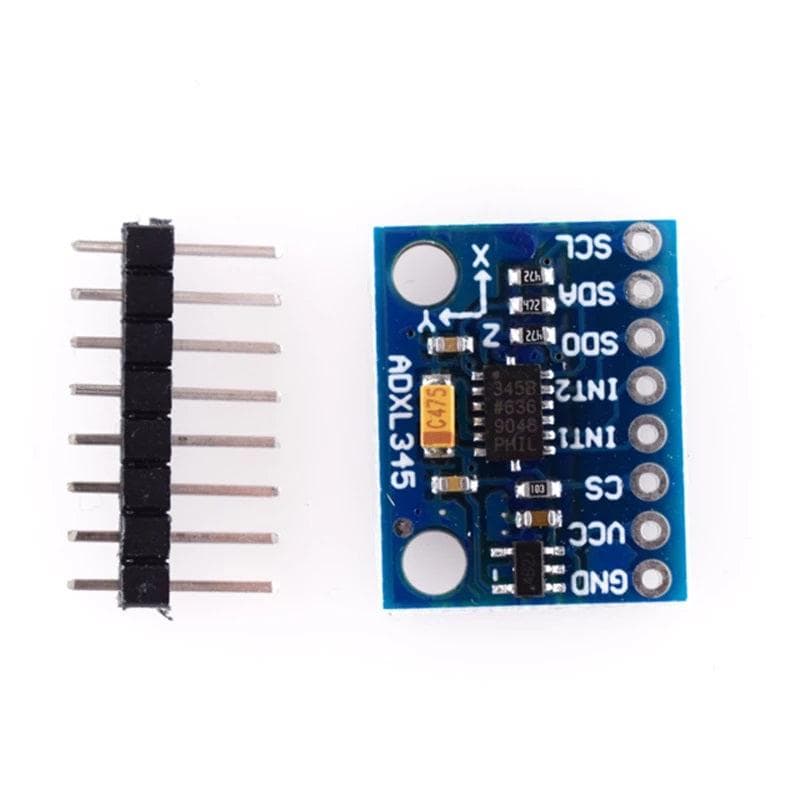

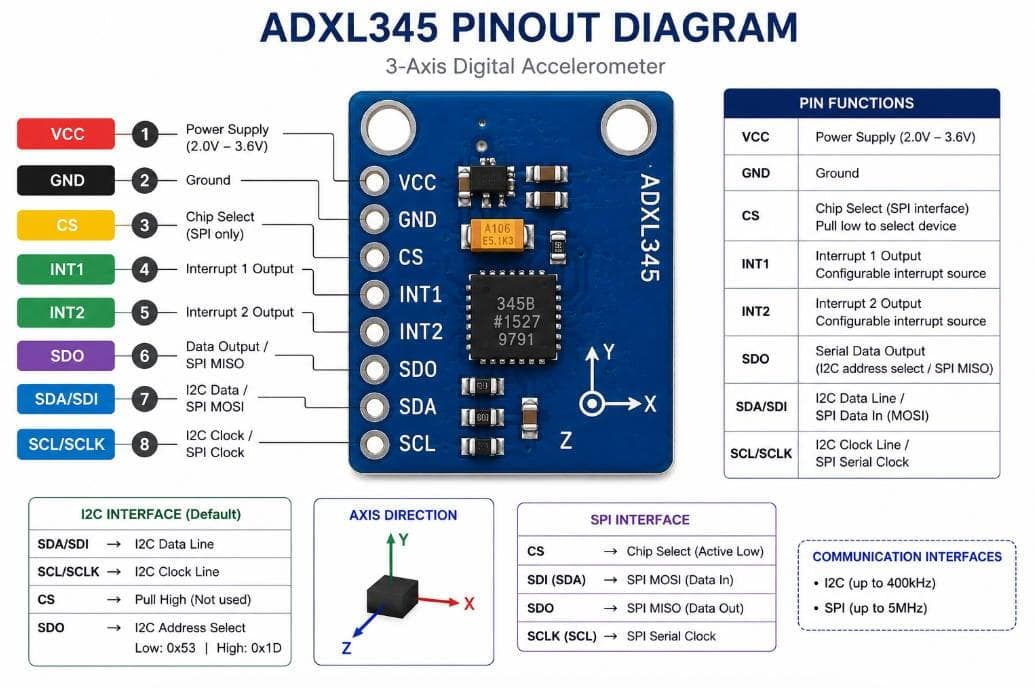

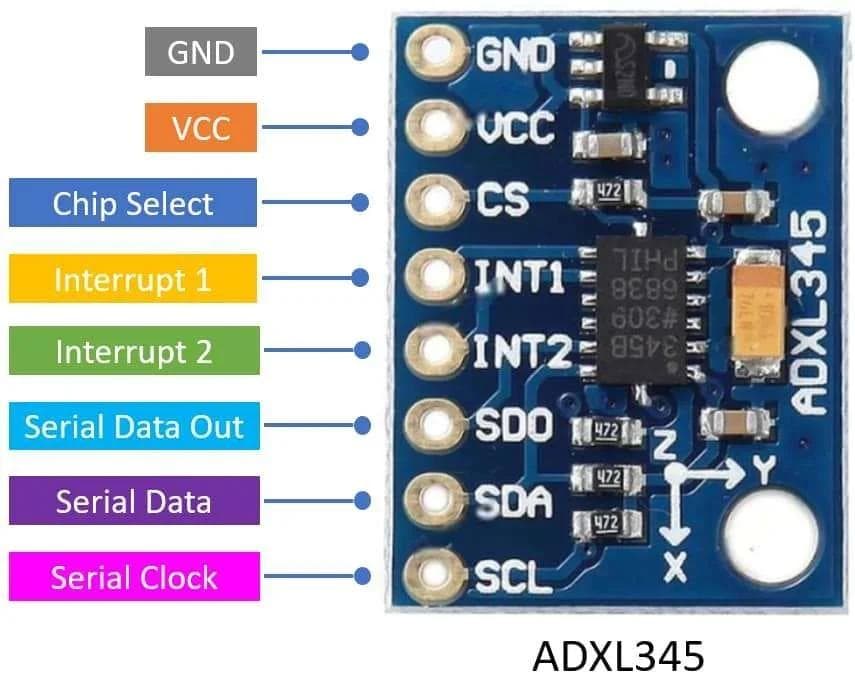

ADXL345 3-Axis Digital Accelerometer Module
0·Generic / Compatible·RS088
The ADXL345 3-Axis Digital Accelerometer Module is a low-power MEMS sensor capable of measuring acceleration along the X, Y and Z axes. It supports selectable measurement ranges of ±2g, ±4g, ±8g and ±16g and provides digital communication through I²C or SPI. Tech Depot It is suitable for robotics, gesture detection, tilt sensing, vibration monitoring, motion detection, fall detection, drones, wearable projects and embedded systems.
₹99₹179-45%
60 in stock
Delivery₹49
Estimated time3–5 business days
Technical specs
| Sensor Type | 3-Axis Digital Accelerometer |
| Sensor IC | ADXL345 |
| Measurement Axes | X / Y / Z |
| Measurement Range | ±2g / ±4g / ±8g / ±16g |
| Resolution | 13-bit |
| Interface | I2C + SPI |
| Default I2C Address | 0x53 |
| Operating Voltage | 3.3–5V* |
| Operating Current | Approx. 140µA |
| Output Data Rate | Up to 3200Hz |
| Features | Activity / Inactivity Detection |
| FIFO | 32-Level |
| Dimensions | Approx. 20 × 15mm |
| Applications | Robotics, Drones, Motion Detection, Tilt Sensing |
| Compatible Boards | Arduino, ESP32, ESP8266, Raspberry Pi, STM32 |
