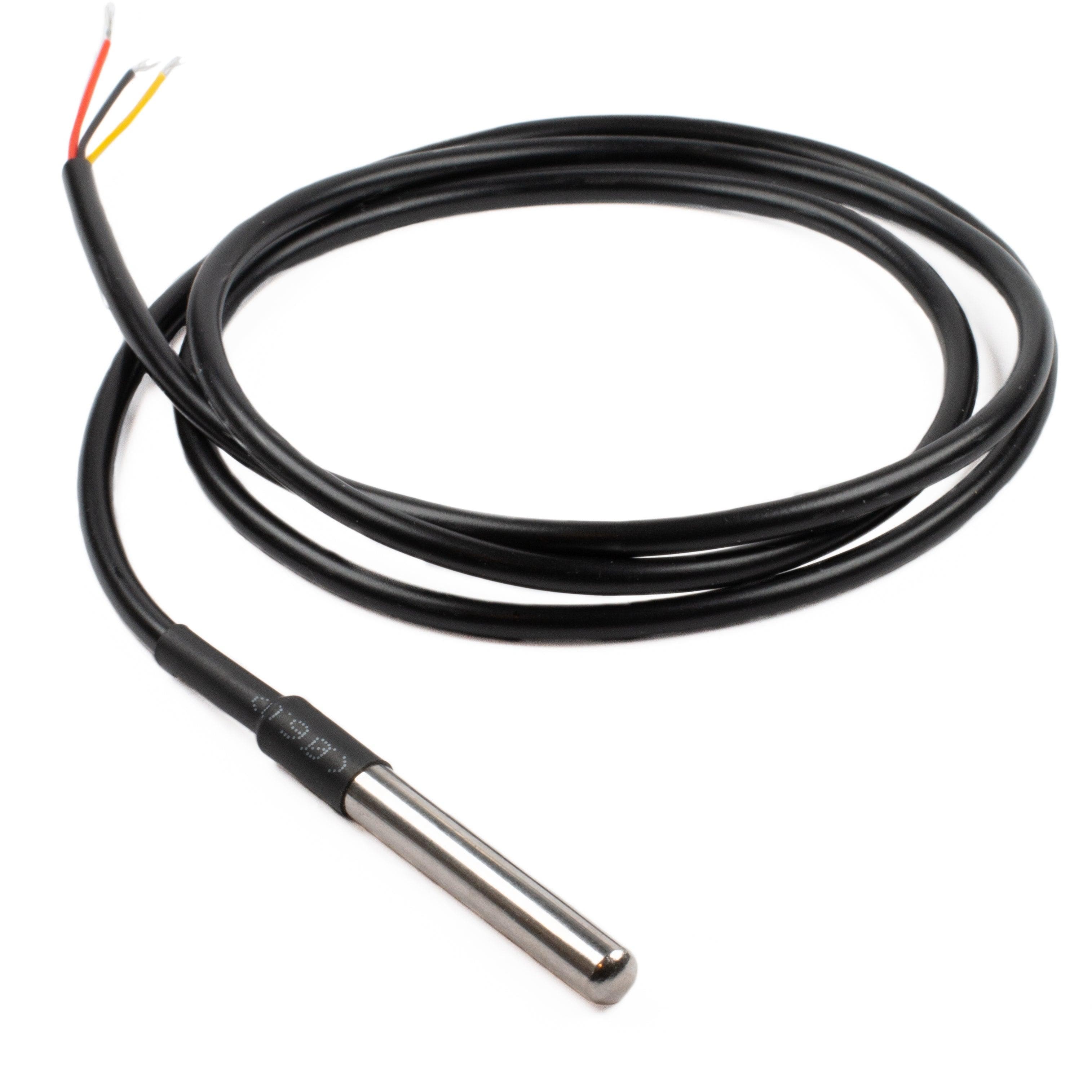

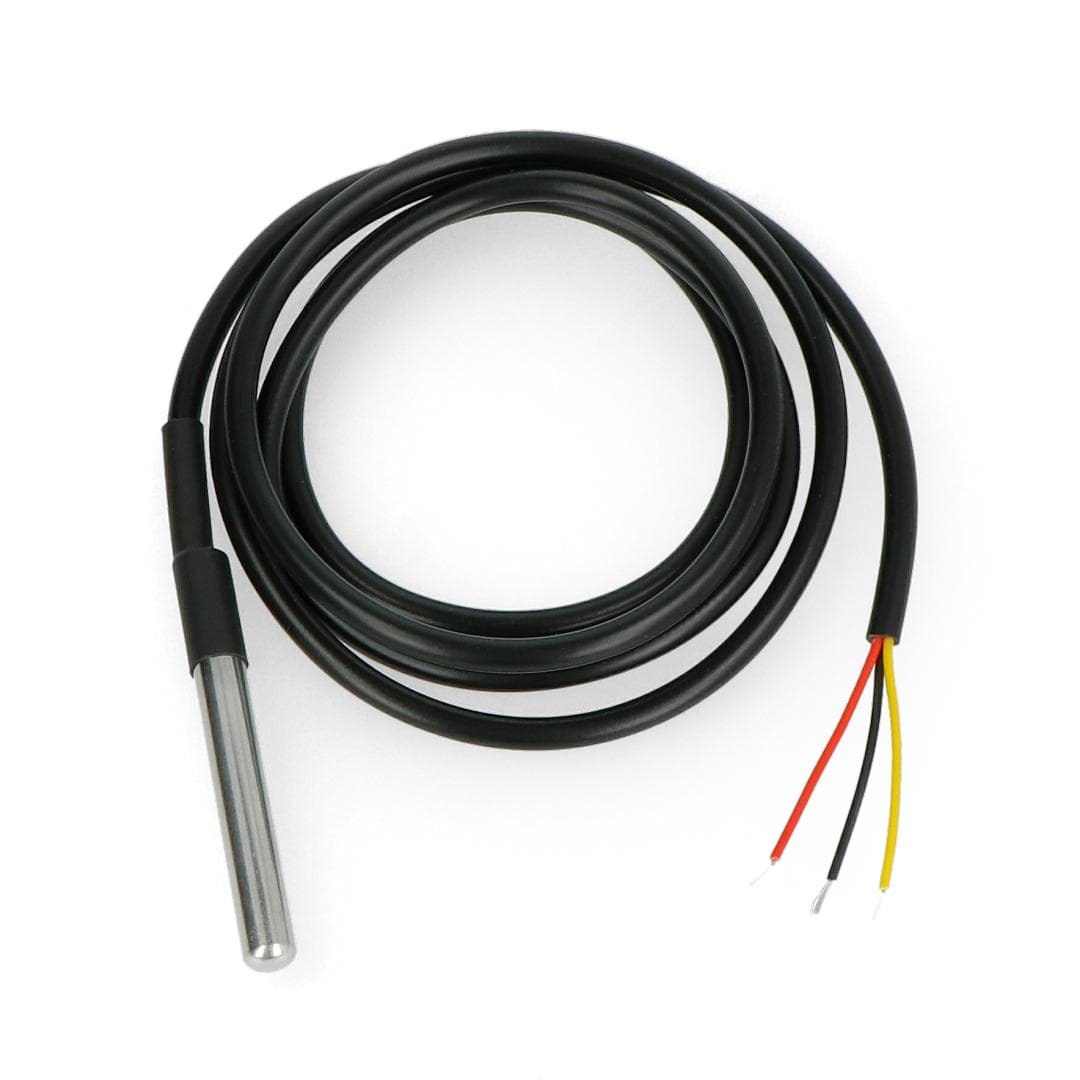

DS18B20 Waterproof Digital Temperature Sensor Probe

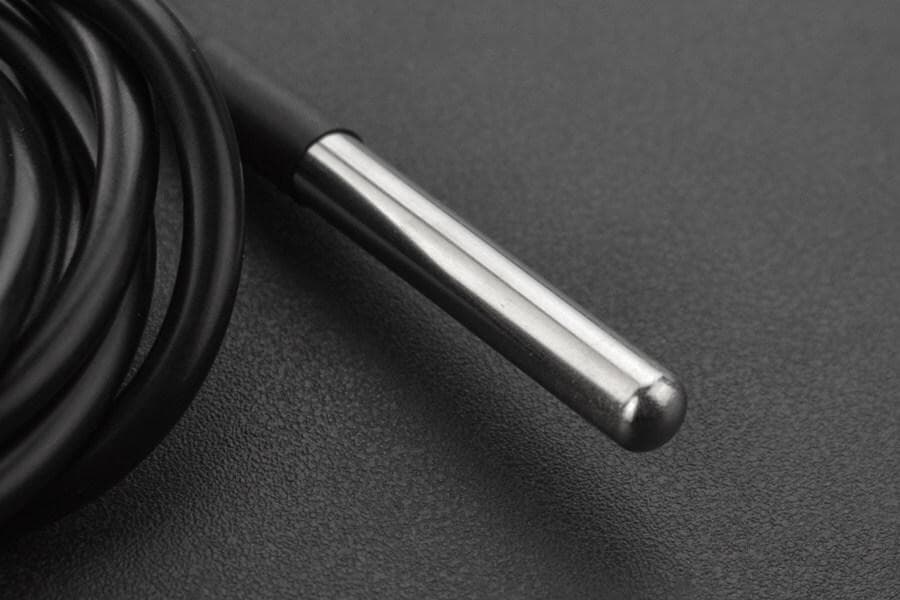

The DS18B20 Waterproof Digital Temperature Sensor Probe is a digital temperature sensor with a stainless-steel waterproof probe and approximately 1-meter cable. It communicates with a microcontroller using the 1-Wire protocol, requiring only one data line for communication. Directronics It can measure temperatures from approximately -55°C to +125°C, with around ±0.5°C accuracy between -10°C and +85°C and selectable 9–12-bit resolution. Each sensor has a unique 64-bit identification code, allowing multiple DS18B20 sensors to share the same data bus. DSMonline Ideal for Arduino, ESP32, ESP8266, Raspberry Pi, aquarium monitoring, weather stations, agriculture, water-temperature monitoring, robotics and IoT projects.
| Sensor Type | Digital Temperature Sensor |
| Sensor IC | DS18B20 |
| Temperature Range | -55°C to +125°C |
| Accuracy | ±0.5°C (-10°C to +85°C) |
| Resolution | 9–12 Bit Programmable |
| Interface | 1-Wire |
| Operating Voltage | 3.0–5.5V |
| Probe Type | Waterproof Stainless Steel |
| Probe Diameter | Approx. 6mm |
| Cable Length | Approx. 1 Meter |
| Unique ID | 64-Bit |
| Conversion Time | Up to 750ms |
| Output | Digital |
| Applications | Arduino, ESP32, IoT, Robotics, Aquarium, Agriculture |
