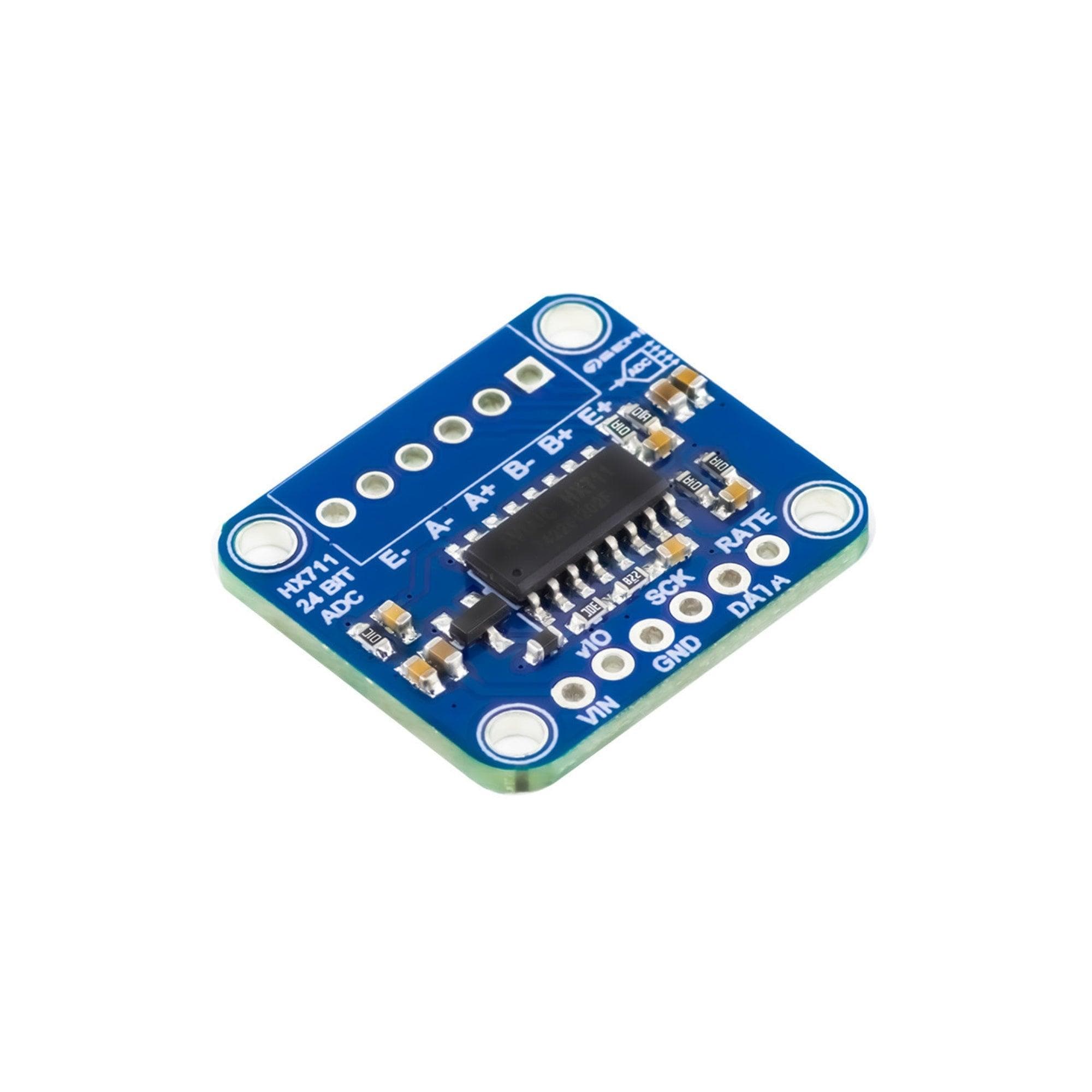

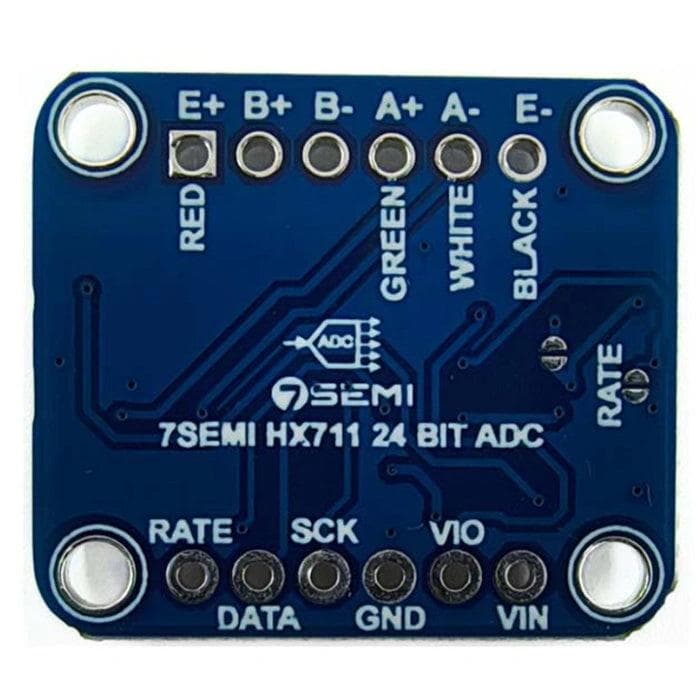

HX711 24-Bit Load Cell Amplifier Module
The HX711 24-Bit Load Cell Amplifier Module is designed for high-precision weight and force measurement using load cells. It provides amplification and high-resolution analog-to-digital conversion, allowing microcontrollers such as Arduino and ESP32 to accurately read small changes in load-cell output. Ideal for digital weighing scales, electronic weighing machines, force measurement, robotics, automation and IoT projects.
| IC | HX711 |
| ADC Resolution | 24-Bit |
| Supply Voltage | 2.7–5.5V |
| Data Rate | 10 / 80 SPS |
| Channels | 2 Differential Inputs |
| Interface | 2-Wire Serial |
| Compatible With | Arduino, ESP32, Raspberry Pi |
| Sensor Compatibility | Load Cells |
| Type | Load Cell Amplifier / ADC |
| Applications | Weight & Force Measurement |
