Modules

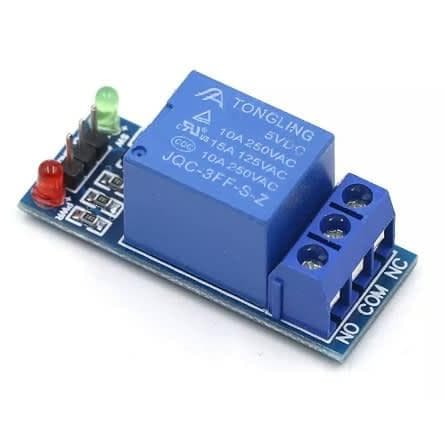

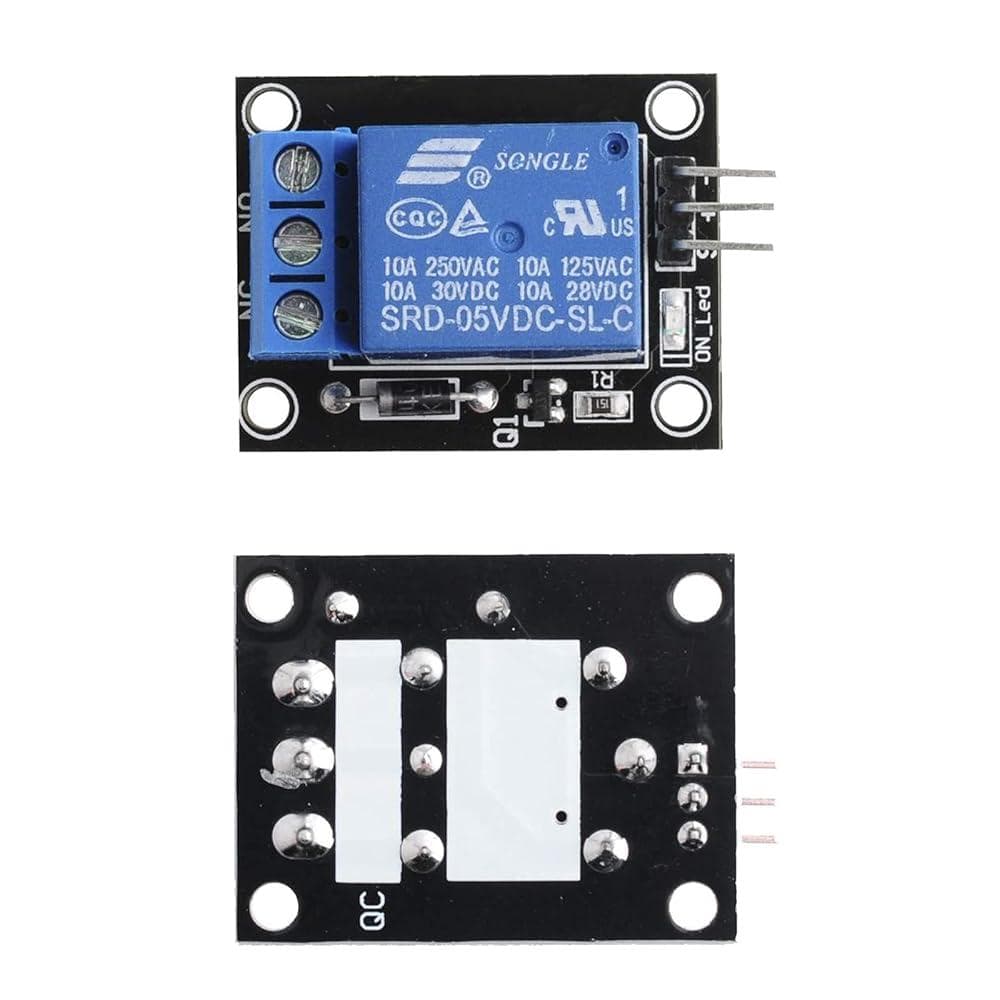

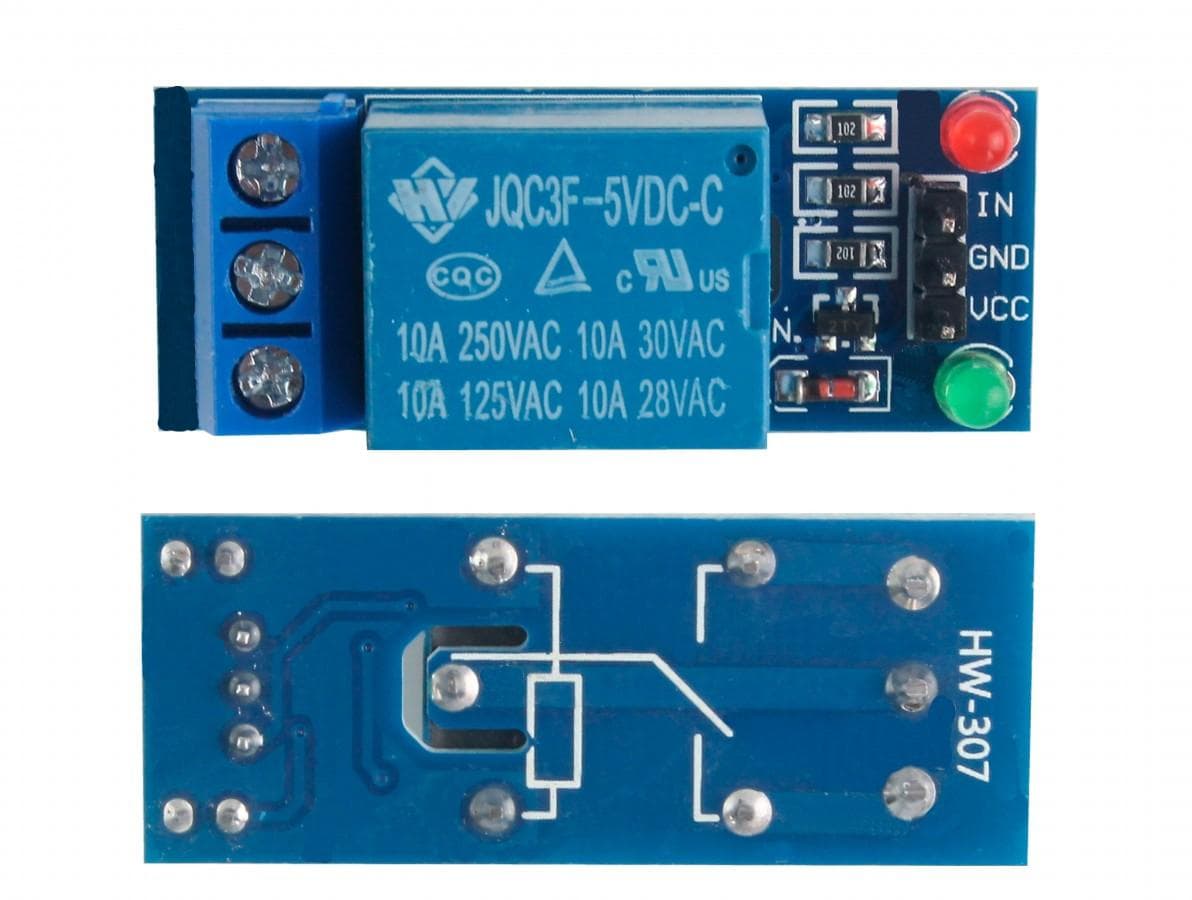

5V 1-Channel Relay Module
0·Generic / Compatible·RS094
The 5V 1-Channel Relay Module is an easy-to-use switching module that allows Arduino, ESP32, ESP8266 and other microcontrollers to control an external electrical load. It provides COM, NO and NC relay contacts, allowing the module to switch devices such as lamps, fans, pumps, solenoids and motors. The onboard driver circuitry and indicator LED make it convenient for robotics, automation and STEM projects.
₹49₹89-45%
59 in stock
Delivery₹49
Estimated time3–5 business days
Technical specs
| Module Type | Electromechanical Relay Module |
| Channels | 1 |
| Operating Voltage | 5V DC |
| Relay Contact | SPDT |
| Contact Terminals | COM / NO / NC |
| Contact Rating | Up to 10A @ 30VDC* |
| Control Input | IN |
| Power Pins | VCC / GND |
| Indicator | Power + Relay LED* |
| Trigger Logic | Module Variant Dependent |
| Driver | Transistor + Flyback Diode* |
| Applications | Robotics, Automation, Arduino, IoT |
| Compatible Boards | Arduino, ESP32, ESP8266, Raspberry Pi |
